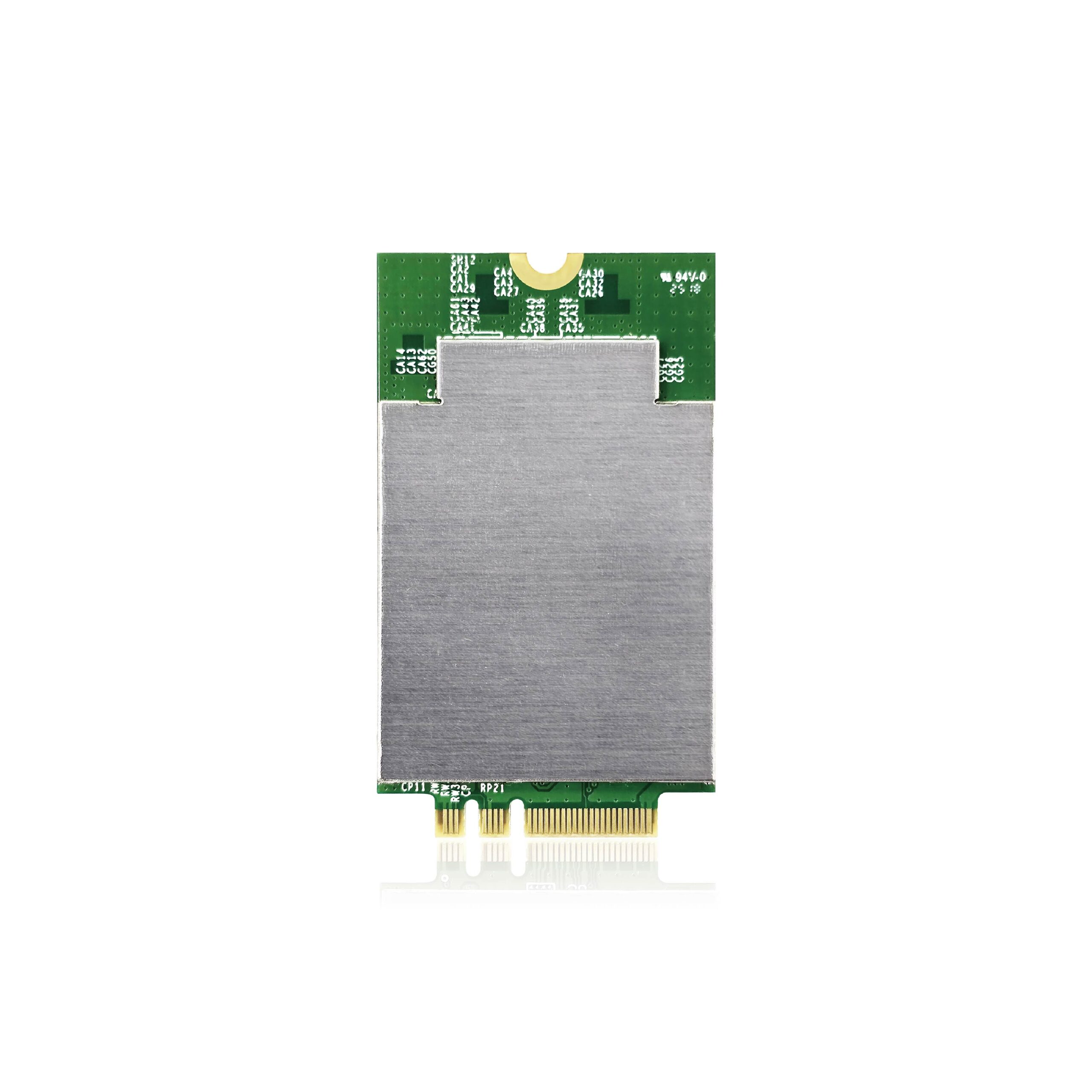

524WiFi AW7990-AED: High-Performance Wi-Fi 7 BE3600 AP Module with MediaTek MT7990AN, DBDC, Dual Band concurrent, MU MIMO 3T3R
AW7990-AED is an Wi-Fi 7 BE3600 module with MediaTek MT7990AN chipset supports Wi-Fi 7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, 2.4GHz 2×2, 5GHz 3×3 2ss BE3600 Wi-Fi subsystem. The MT7990AN offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7976CN is designed to support standard-based features in the areas of security, quality of service, and international regula tions, giving end users the greatest performance at any time and in any circumstances.
The module is fully compliant with global Wi-Fi standards and regulations, and supports advanced features such as robust security, Quality of Service (QoS), and seamless roaming—making it an ideal solution for embedded systems, gateways, and industrial applications that require compact, high-speed wireless connectivity.
Features
WLAN
- IEEE802.11 a/ b/ g/ n/ ac/ ax/ be compliant
- Frequency band 2.4GHz [G-band]
– Bandwidth:G+A 40+160 MHz
– 2 x 2 2ss (2T2R 2.4GHz) - Frequency band 5GHz [A-band]
– Bandwidth:20/ 40/ 80/ 160MHz
– 3T3R 2ss - Dual-Band Dual Concurrent (DBDC) iFEM
- Supports up to 4096-QAM
- Data rate of up to 688Mbps for 40MHz channel in 2.4Ghz and 4323Mbps for 160MHz in 5GHz mode
- Integrated power detector to support per packet Tx power control
- Multi-user multiple input multiple output (MU-MIMO) for Tx and Rx
- Multi-user Orthogonal Frequency-Division Multiple Access (MU-OFDMA) for Tx and Rx
- Support STBC, LDPC, Tx beamformer and Rx beamformee
- Support greenfield mode, mixed mode, and legacy mode
Platform
- 32bit RISC-V MCU for Wi-Fi protocol and Wi-Fi offload
- Embedded SRAM and ROM
- PCIe3.0 interface
Security
- WFA, WPA, WPA2, WPA3 personal, WPS 2.0
QoS
- WFA WMM and WMM-PS
Standard
| Chipset | MT7990AN with MT7976CN |
| Memory | 8M byte |
| Host Interface | M.2 A-E key |
| Operating Voltage | DC 3.3V ± 5% |
| Power Consumption | 11.5W |
| Wireless | 2.4GHz 2T2R 802.11b/g/n/ac/ax/be 5GHz 3T3R 802.11a/n/ac/ax/be |
| Frequency Range | 2.4GHz: 2.412~2.47 2GHz 5GHz: 5.15~5825GHz |
| Channel Spectrum Widths | Supports 20/40MHz at 2.4GHz Supports 20/40/80/160MHz at 5GHz |
| Antenna | External Antenna connector (IPEX) x2 |
| Operating System | Linux |
| Environmental Temperature | Operating:-10°C to 70°C, Storage:-20°C to 90°C |
| Environmental Humidity | Operating: 10% to 90%, Storage: Max. 90% |
| Dimensions (mm) | 30(W)*52(L)*5.1(H)mm |
| Weight | 0,025 |
| Certification | TBD |
Package with Heatsink 30x40x25mm Aluminum material
Additional information
| Weight | 0.0255 kg |
|---|---|
| Dimensions | 3.0 × 5.1 × 1 cm |
