IP67-rated dipole OMNI WiFi 6/ WiFi 6E/ WiFi 7 applications in the 2.4 GHz, 5 GHz and 6 GHz bands. The antenna connects via an RP-SMA plug (female socket) connector.

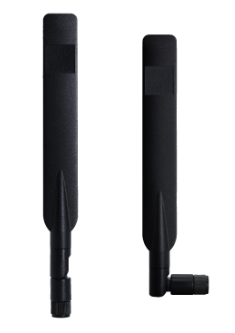

Wi-Fi 7 Antenna ANTS0WF602M01001 , 2400-2500MHz, 5150-5850MHz, 6150-7200MHz, SMA Plug, 2-5dBi, 188×21.6mm
The Wi-Fi 7 Antenna ANTS0WF602M01001 is an advanced antenna solution for modern wireless communications. It supports frequencies from 2400-2500MHz, 5150-5850MHz, to 6150-7200MHz, ensuring wide compatibility.
The antenna features an SMA Plug and offers a gain of 2-5dBi, promising strong and reliable signal reception. With dimensions of 188×21.6mm, it’s compact yet effective for both personal and professional use.
This antenna is ideally paired with the Mediatek AW 7916 / 7915 Wi-Fi 6E AX3000 Mini PCIe Module, enhancing its capabilities.
Standard
| Frequency Range | 2400~2500MHz5150~5850MHz
6150~7200MHz |
| Impedance | 50Ωy |
| VSWR | 2400~2500MHz@≤2.55150~5850MHz@≤2.5
6150~7200MHz@≤4.0 |
| Gain | 2-5dBi |
| Admitted power radiation | 1W |
| Pattern of Radiation | Toroidal |
| Radiation | Omni |
| Polarization | Vertical |
| Connector Type | RP-SMA Plug |
Mechanical properties
| Operation temperature range | -20℃~+85℃ |
| Storage temperature range | -20℃~+85℃ |
| Color | Black |

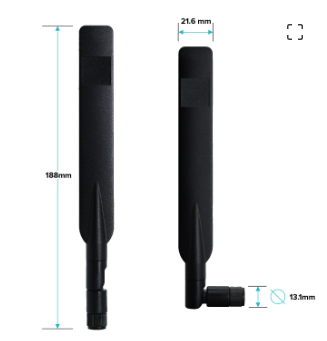

| Dimension | As diagram |
| Weight | 11.4 g |
| Main Material | PC/PC+PBT/POM/ Brass/RG316/PCB/ |
Additional information
| Weight | 0.024 kg |
|---|---|
| Dimensions | 20 × 1.3 × 2.2 cm |
