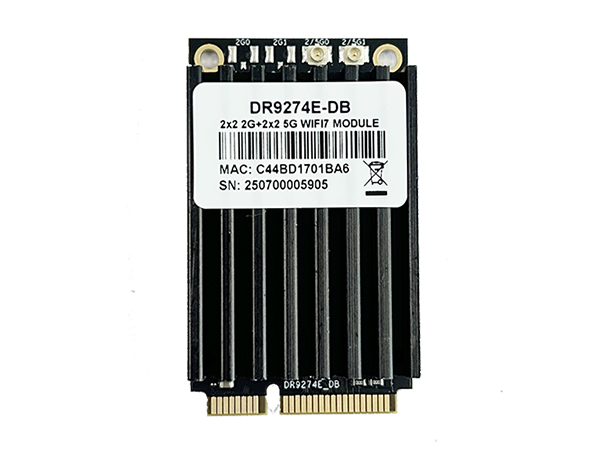

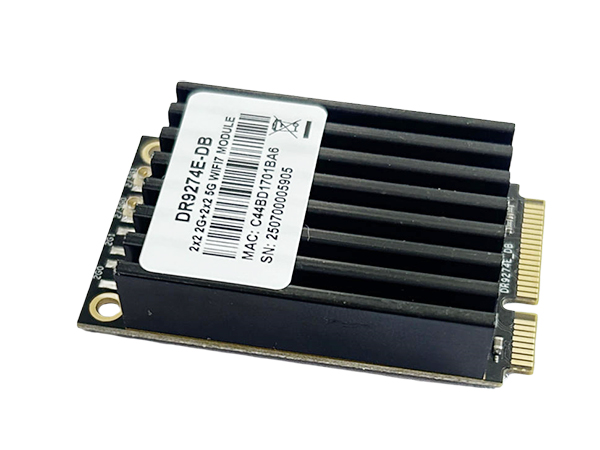

QCN9274 524WiFi WiFi7 DReam 9274E-DB miniPCIe Qualcomm Dual band 2,4 + 5 GHz 802.11BE 2X2 MU-MIMO DBDC WIFI7 MODULE, serie Proplus

Product Description : 524WiFi 7 DRiver 9274E-DB based on QCN9274 or QCN6274 Chipset is an enterprise wireless miniPCIE module integrated with 2×2 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment

Features

■ Qualcomm Atheros QCN6274;

■ Qualcomm Atheros QCN9274 for Industrial Grade (samples available now in stock ready !!);

■ Maxim Tx power 20dBm per chain;

■ 2×2 2.4GHz MU-MIMO, up to 1376Mbps physical data rate;

■ 2×2 5GHz MU-MIMO, up to 5765Mbps physical data rate;

■ Support up to 4096-QAM;

■ miniPCIE connector;  2×2 u.fl antenna connectors

■ PCI Express 3 .0 Interface



Applications

■ Security Surveillance

■ Commercial radio coverage

■ Hotel Wireless application

■ Forest fire protection engineering

■ Country coverage

■ Some special scene application

Absolute Maximum Rating



Parameter	Rating	Unit
Operating Temperature Range	-20 ~ 70	oC
Storage Temperature Range	-40 ~ 85	oC
Operating Humidity Range	5 ~ 95 (non-condensing)	%
Storage Humidity Range	0 ~ 90 (non-condensing)	%

Hardware Specifications



Symbol	Parameter
Chipset	Qualcomm QCN6274 ‘Waikiki’ series for Commercial grade; Qualcomm QCN9274 ‘Waikiki’ series for Industrial grade;
wireless	2.4GHz 802.11a/n/ax/be, max 20 dBm per chain 5GHz 802.11a/n/ax/be, max 20 dBm per chain 2×2 U.FL Connectors
Frequency  Range	2.4GHz: 2.412~2.482GHz 5GHz: 5.150~5.885GHz
wireless	2×2 2.4GHz MU-MIMO, up to 1376Mbps physical data rate; 2 x 2 5G MU-MIMO, up to 5765Mbps physical data rate;
Modulation  Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM, 4096QAM
Bandwidth	Supports 20/40MHz at 2.4GHz Supports 20/40/80/160MHz at 5GHz
Power Supply	3.3V
Interface	MiniPCIe Interface with PCIe 3.0
Environmental Temperature	Operating(Commercial Grade): -20°C to 70°C; Operating(Industrial Grade): -40°C to 85°C;
Storage Temperature	Storage: -40°C to 90°C
Environmental Humidity, Non-Condensing	Operating: 5% to 95%, Storage: Max. 90%
Power  Consumption	9W Maxim
Certification	REACH & RoHS Compliance
Dimensions (W x H x D) in mm	30 X 50.8 X 12.5 mm



Version

NO	Name	Mainchip
1	DR9274E-DB	QCN6274
2	DR9274E-DBI	QCN9274





RF Performance Table at 2.4GHz



Operating Mode	Data Rate	TX Power		RX Specificatios Sensitivity	Tolerance
		per Chain	2 Chains
2.4GHz 802.11b	1Mbps	24dBm	27dBm	TBD	±2dB
	2Mbps	24dBm	27dBm	TBD	±2dB
	5.5Mbps	22dBm	25dBm	TBD	±2dB
	11Mbps	22dBm	25dBm	TBD	±2dB
2.4GHz 802.11g	6Mbps	24dBm	27dBm	TBD	±2dB
	9Mbps	24dBm	27dBm	TBD	±2dB
	12Mbps	24dBm	27dBm	TBD	±2dB
	18Mbps	24dBm	27dBm	TBD	±2dB
	24Mbps	22dBm	25dBm	TBD	±2dB
	36Mbps	22dBm	25dBm	TBD	±2dB
	48Mbps	21dBm	24dBm	TBD	±2dB
	54Mbps	21dBm	24dBm	TBD	±2dB
2.4GHz 802.11n HT20	MCS0	24dBm	27dBm	TBD	±2dB
	MCS1	24dBm	27dBm	TBD	±2dB
	MCS2	24dBm	27dBm	TBD	±2dB
	MCS3	24dBm	27dBm	TBD	±2dB
	MCS4	22dBm	25dBm	TBD	±2dB
	MCS5	22dBm	25dBm	TBD	±2dB
	MCS6	21dBm	24dBm	TBD	±2dB
	MCS7	21dBm	24dBm	TBD	±2dB
2.4GHz 802.11n HT40	MCS0	24dBm	27dBm	TBD	±2dB
	MCS1	24dBm	27dBm	TBD	±2dB
	MCS2	24dBm	27dBm	TBD	±2dB
	MCS3	24dBm	27dBm	TBD	±2dB
	MCS4	22dBm	25dBm	TBD	±2dB
	MCS5	22dBm	25dBm	TBD	±2dB
	MCS6	21dBm	24dBm	TBD	±2dB
	MCS7	21dBm	24dBm	TBD	±2dB
2.4GHz 802.11ax HT20	MCS0	24dBm	27dBm	TBD	±2dB
	MCS1	24dBm	27dBm	TBD	±2dB
	MCS2	24dBm	27dBm	TBD	±2dB
	MCS3	24dBm	27dBm	TBD	±2dB
	MCS4	22dBm	25dBm	TBD	±2dB
	MCS5	22dBm	25dBm	TBD	±2dB
	MCS6	21dBm	24dBm	TBD	±2dB
	MCS7	21dBm	24dBm	TBD	±2dB
	MCS8	20dBm	23dBm	TBD	±2dB
	MCS9	20dBm	23dBm	TBD	±2dB
	MCS10	19dBm	22dBm	TBD	±2dB
	MCS11	19dBm	22dBm	TBD	±2dB



RF Performance Table at 2.4GHz



Operating Mode	Data Rate	TX Power		RX Specificatios Sensitivity	Tolerance
		1 Chain	2 Chains
2.4GHz 802.11ax HE40	MCS0	24dBm	27dBm	TBD	±2dB
	MCS1	24dBm	27dBm	TBD	±2dB
	MCS2	24dBm	27dBm	TBD	±2dB
	MCS3	24dBm	27dBm	TBD	±2dB
	MCS4	22dBm	25dBm	TBD	±2dB
	MCS5	22dBm	25dBm	TBD	±2dB
	MCS6	21dBm	24dBm	TBD	±2dB
	MCS7	21dBm	24dBm	TBD	±2dB
	MCS8	20dBm	23dBm	TBD	±2dB
	MCS9	20dBm	23dBm	TBD	±2dB
	MCS10	19dBm	22dBm	TBD	±2dB
	MCS11	19dBm	22dBm	TBD	±2dB
2.4GHz 802.11be EHT20	MCS0	24dBm	27dBm	-96.5dBm	±2dB
	MCS1	24dBm	27dBm	-95dBm	±2dB
	MCS2	24dBm	27dBm	-93dBm	±2dB
	MCS3	24dBm	27dBm	-90.5dBm	±2dB
	MCS4	22dBm	25dBm	-87dBm	±2dB
	MCS5	22dBm	25dBm	-83dBm	±2dB
	MCS6	21dBm	24dBm	-81dBm	±2dB
	MCS7	21dBm	24dBm	-79dBm	±2dB
	MCS8	20dBm	23dBm	-76dBm	±2dB
	MCS9	20dBm	23dBm	-73dBm	±2dB
	MCS10	19dBm	22dBm	-70dBm	±2dB
	MCS11	19dBm	22dBm	-68dBm	±2dB
	MCS12	18dBm	21dBm	-64dBm	±2dB
	MCS13	18dBm	21dBm	-61dBm	±2dB
2.4GHz 802.11be EHT40	MCS0	24dBm	27dBm	-95dBm	±2dB
	MCS1	24dBm	27dBm	-93dBm	±2dB
	MCS2	24dBm	27dBm	-90dBm	±2dB
	MCS3	24dBm	27dBm	-88dBm	±2dB
	MCS4	22dBm	25dBm	-85dBm	±2dB
	MCS5	22dBm	25dBm	-81dBm	±2dB
	MCS6	21dBm	24dBm	-79dBm	±2dB
	MCS7	21dBm	24dBm	-77dBm	±2dB
	MCS8	20dBm	23dBm	-73dBm	±2dB
	MCS9	20dBm	23dBm	-71dBm	±2dB
	MCS10	19dBm	22dBm	-67dBm	±2dB
	MCS11	19dBm	22dBm	-65dBm	±2dB
	MCS12	18dBm	21dBm	-61dBm	±2dB
	MCS13	18dBm	21dBm	-58dBm	±2dB
