Description

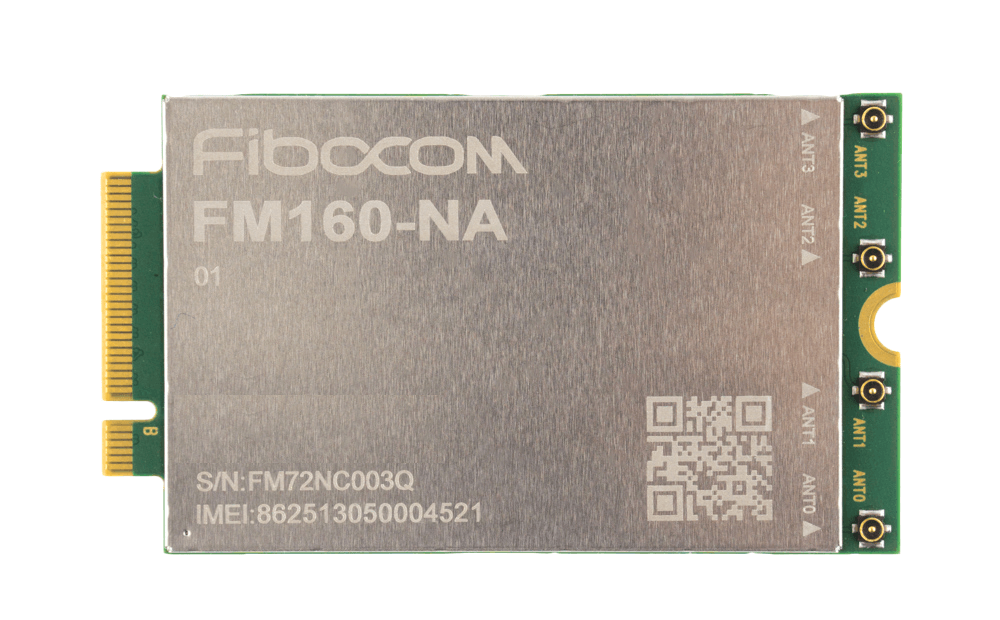

Fibocom FM160-NA-01 5G Sub6 M.2 module is a NR Sub 6 module with 3GPP Release 16, which is backward compatible with LTE/WCDMA network standards. Powered by the Qualcomm Snapdragon® X62 modem chipset, the module delivers maximum downlink rates of 3.5Gbps and uplink rates of 900Mbps under 5G, suitable for IoT applications that require high data throughput.
It is intended Europe and APAC with support for both 5G SA and NSA network architectures with faster transmission speed, better capacity and lower network latency.
FM160-NA supports 3GPP Release 16 and NR CA. It has LTE Cat-19 fallback and support for FDD & TDD ENDC. With standard M.2 interface it makes it convenient for customers to update products quickly and respond to the commercial needs of the market.
Suitable applications include gateways, industrial monitoring, remote medical, UAV and Virtual Reality.
Key benefits
- 3GPP Release 16
- NR/LTE/WCDMA
- NR CA
- USB 3.1
- Extended industrial operating temperature
Primary Technology
Fallback
Max UL Speed
900 Mbps
Carrier Certification
Data Interface
Form Factor
LTE Bands
B1 (FDD 2100)B3 (FDD 1800)B5 (FDD 850)B7 (FDD 2600)B8 (FDD 900)B20 (FDD 800DD)B28 (FDD 700)B32 (SDL 1500)B38 (TDD 2600)B40 (TDD 2300)B41 (TDD 2500)B42 (TDD 3500)B43 (TDD 3600)B46 (TDD 5200)
GNSS
Yes
Operating Temperature Range
-30 – 70 °C
Driver Support
5G Bands
UMTS Bands
GNSS technology
Extended Operating Temperature Range
-40 – 85 °C
Region
Max DL Speed
3500 Mbps
Antenna Connectors
Chipset
