The 524WiFi™ Pulse B5018-2×2 platform brings tri-band connectivity to outdoor mesh designs. This field-test report follows three hops over approximately 730 meters.
The setup
Hardware: 524WiFi™ Pulse B5018-2×2 board
Topology: three-hop mesh, outdoors
Distance: about 730 meters end to end
Traffic: iperf3, multiple concurrent streams
The result
Aggregate throughput: 621-631 Mbps.
524WiFi™ · Pulse B5018-2×2 · field-test captureParallel-stream measurements from the original field-test report. The recorded aggregate samples shown are 621, 628 and 631 Mbps. Open full-size image524WiFi™ · Pulse B5018-2×2 · animated three-hop topologyFour nodes and three hops over approximately 730 meters. The 621–631 Mbps figure describes aggregate traffic across the complete path; the moving links illustrate the topology. Open full-size image
Understanding the aggregate result
It is the combined throughput of multiple parallel streams across the whole mesh path.
Use the aggregate result to assess the capacity of the complete mesh path under concurrent traffic.
The reported 621–631 Mbps combines multiple parallel streams across the three-hop path. Plan individual client throughput around its radio capabilities, placement and the traffic sharing that path.
Why we care about multi-hop
Anyone can make one hop look good. The trouble starts at hop two and hop three, where throughput often falls off and the far end of the network becomes the slow end.
This test was about that far end. Three hops and ~730 meters later, the path still carried over 600 Mbps in aggregate. Mesh doesn’t have to mean “slow at the edge.”
Where this matters
Campuses and industrial sites where running fiber to every pole isn’t realistic
Temporary or fast-deploy outdoor coverage
Warehouses, yards and ports where coverage has to follow the operation
Anywhere a wired backhaul is too slow or too expensive to build
What’s next
This is the first data point, not the last. We’ll keep testing other topologies and share results here under 524WiFi™ News, including the numbers that aren’t flattering.
Building an outdoor mesh, or stuck with a multi-hop design that falls apart past hop two? Send us your topology and your target throughput. We’ll bring the test results.
524WiFi™ · Pulse B5018-2×2 · deployment illustrationConcept illustration of an industrial outdoor mesh network. Hardware appearance in this supplementary scene is illustrative; model-specific photographs and specifications are shown above. Open full-size image
524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP Design-In Checklist: 10G SFP, PoE, and M.2 E-key on a Qualcomm IPQ5424 Wi-Fi 7 Platform
A Wi-Fi 7 board looks simple on a spec sheet. The wireless platform is one line. The work that decides whether your product ships on time sits in the other lines: the uplink, the power input, the expansion slots, the heat, and the enclosure.
524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP is a tri-band Wi-Fi 7 platform built on Qualcomm IPQ5424. It shares its wireless platform with 524WiFi™ Pulse B5424-4×4 but spends its interface budget differently: a 10G SFP uplink, 10GbE PoE input, 2.5GbE PoE output, and 2× M.2 E-key PCIe 3.0 slots, instead of a bank of RJ45 ports.
This article walks through what each interface changes in a real design, what to verify before committing, and where the board stops and system engineering begins.
What does 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP change in a product design?
524WiFi™ · Pulse IPQ5424 · interface comparisonCompare copper networking, fiber uplink and expansion interfaces for the two Pulse configurations. Open full-size image
Between 524WiFi™ Pulse B5424-4×4 and 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP, the Wi-Fi 7 platform stays the same (Qualcomm IPQ5424). The wired side and the expansion side change.
For a product team, that is not a spec swap. It changes four parts of the product at once: how the device is cabled, how it is powered, how it is extended, and how it is cooled and housed. Each one has its own checks below.
Fiber uplink: 10G SFP
A 10G SFP port replaces a copper uplink with a cage that accepts a fiber module. That helps where nodes sit far from the backbone, as in industrial parks, warehouses, ports, and large facilities.
What to check:
Module type and reach. The cage doesn’t decide your fiber type or distance. Choose the module for the deployment, then confirm it works on the board.
Module compatibility. Test the specific SFP modules you plan to ship or recommend, not only one reference module.
Module power and heat. An optical module adds heat inside or next to the enclosure. Include it in the thermal plan.
Mechanical access. Decide how the cage is reached through the enclosure, and how the fiber is strain-relieved and sealed in an outdoor design.
Power: 10GbE PoE input and 2.5GbE PoE output
524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP combines a 10GbE PoE input with a 2.5GbE PoE output. In sites where a separate power run is inconvenient, such as industrial floors, outdoor nodes, and distributed devices, a well-planned PoE design can simplify installation.
A port name does not define a power design. Take these from the official datasheet and confirm them on your bench:
PoE standard supported on the input and on the output
Power budget: what the input can deliver, and how much is left for the output after the board and any modules draw their share
Power direction: which port receives power and which one sources it
Simultaneous load: behavior when radios, both M.2 modules, the SFP, and the PoE output all run at once
Startup and fault behavior: inrush, brown-out, and what happens to downstream powered devices
If you plan to power a downstream device from the 2.5GbE output, write down that device’s worst-case draw early. It is the number most likely to push the input budget.
For reference when budgeting: the 524WiFi™ Pulse B5424-4×4 board is specified at DC 12V 5A input with 39.3W maximum board-only power consumption. 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP power figures must come from its own datasheet. Don’t carry 524WiFi™ Pulse B5424-4×4 numbers over.
Expansion: 2× M.2 E-key PCIe 3.0
Two M.2 E-key PCIe 3.0 slots let you evaluate expansion modules instead of fixing every function on the mainboard. Different models can share a core platform and differ in their expansion configuration.
Thermal and enclosure: where the board stops
A board is not an enclosure. For indoor aluminum designs and outdoor designs alike, the work around the board includes:
Heat path from the SoC, radios, SFP module, and any M.2 modules to the enclosure surface
Behavior with both M.2 slots populated and the PoE output loaded
Antenna placement, cable routing, and isolation across bands
For outdoor use: a waterproof and dustproof enclosure, surge protection, and wide-temperature validation
The 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP board itself should not be treated as an IP67 or wide-temperature industrial product. Those properties belong to the finished, validated device. Plan the thermal and sealing work from the first mechanical sketch, not after the first prototype overheats.
Radio and antennas: confirm the configuration
524WiFi™ Pulse B5424-4×4 uses three independent radio chains operating concurrently, with 4×4 MU-MIMO on each band, and exposes 12× U.FL antenna connectors. That is true tri-band concurrent operation, and it should not be confused with a tri-band switchable card, which moves one radio between 2.4GHz, 5GHz, and 6GHz.
For 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP, confirm the exact radio configuration, antenna connector count, and per-band channel widths against its datasheet before you finalize antenna design. Antenna count and layout drive enclosure size, cable routing, and cost.
Which board for which design?
524WiFi™ · Pulse IPQ5424 · select by applicationMatch the interface layout to the wired topology, PoE requirements and expansion plan. Open full-size image
524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP is not an across-the-board upgrade over 524WiFi™ Pulse B5424-4×4. They are application-oriented choices on one Wi-Fi 7 platform. The shared platform also doesn’t prove that software, RF performance, thermal behavior, or firmware are identical, so verify each board for your product.
Hardware summary: what we can state today
524WiFi™ Pulse B5424-4×4 (Qualcomm IPQ5424): quad-core Cortex-A55 at 1.8GHz; 4GB DDR4 standard, 8GB optional; 4×4 MU-MIMO on 2.4GHz, 5GHz, and 6GHz; up to 240MHz channel width on 5GHz and 320MHz on 6GHz; 2×10GbE plus 4×2.5GbE RJ45; USB 2.0, USB 3.0, JTAG, UART; 12× U.FL antenna connectors; DC 12V 5A input; 39.3W maximum board power consumption (board only); 215 × 180 × 29mm including heatsink; REACH and RoHS.
524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP (Qualcomm IPQ5424): tri-band Wi-Fi 7 platform; 10G SFP; 10GbE PoE input; 2.5GbE PoE output; 2× M.2 E-key PCIe 3.0. Refer to the 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP datasheet for full radio, memory, power, and mechanical specifications.
The question to start with
Before you pick a board, write down five numbers for your product: how many wired ports it needs, what uplink it uses, what power source it runs from, which expansion modules it must support, and what enclosure volume it has to fit. The right platform is the one that matches those five, not the one with the longest spec list.
What is the first constraint in your current AP or gateway design: ports, power, thermals, or space?
If you’re looking for a Qualcomm IPQ5424 Wi-Fi 7 platform for an industrial access point, wireless gateway, or edge network device, with the option of a 10G SFP uplink, PoE, and M.2 expansion, 524WiFi™ can help. We can walk you through 524WiFi™ Pulse B5424-4×4 and 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP against your requirements, share the datasheet, and discuss OEM/ODM customization.
524WiFi™ · Pulse B5424-4×4-2×2-2×2-SFP · deployment illustrationConcept illustration of fiber, Ethernet and modular expansion. Hardware appearance in this supplementary scene is illustrative; model-specific photographs and specifications are shown above. Open full-size image
From single-radio 4×4 MIMO to dual 2×2 radio configurations, the series provides options across different frequency ranges, with both M.2 E-Key and Mini PCIe form factors available.
Whether you are developing enterprise access points, industrial wireless equipment, networking devices or embedded systems, the 524WiFi™ Pulse P9274 series gives you more options when selecting a Wi-Fi 7 module for your project.
Key Features at a Glance
Qualcomm QCN9274 platform for Wi-Fi 7 module development
4×4 MIMO and dual 2×2 radio configurations
Multiple frequency options: 2.4 GHz, 5 GHz, 6 GHz and specified 5–7 GHz configurations
Two interface options: M.2 E-Key and Mini PCIe
Multiple module variants to match different hardware architectures
Actual supported frequencies, operating modes and platform compatibility depend on the selected model and its technical specifications.
1. Flexible Radio Configurations for Different Applications
Different wireless products require different radio architectures. The 524WiFi™ Pulse P9274 series offers several configuration options to help hardware developers select a suitable starting point.
Single-radio 4×4 MIMO
Available configurations include 2.4 GHz, 5 GHz, 6 GHz and a specified 5–7 GHz variant, depending on the model.
Dual 2×2 radio configurations
Choose from different combinations, including:
2.4 GHz + 5 GHz
5 GHz + 6 GHz
2.4 GHz + 5–7 GHz
Dual 5–7 GHz configurations
Dual 6 GHz configurations
These options allow developers to evaluate different radio architectures according to their target frequency bands, antenna design and system requirements.
Note: The availability of simultaneous operation, specific channels and operating modes must be confirmed for the selected model.
524WiFi™ · Pulse · radio configuration referenceRadio combinations, form factors and dimensions from the original selection guide. Descriptive rows identify configuration options; the linked Pulse product table below identifies our stocked models. Open full-size image
Qualcomm QCN9274 Waikiki Wi-Fi 7 Mini PCIe Radio Module, 2.4 + 5/6 GHz Dual-Band Concurrent, 2×2 per Radio
3. Potential Applications
Enterprise and Industrial Access Points
Evaluate radio configurations for enterprise and industrial wireless access point designs based on frequency requirements, antenna architecture and system capacity targets.
Wireless Bridges and Networking Equipment
Select a suitable configuration for wireless networking projects based on the intended link architecture, antenna system, operating band and required throughput.
Embedded Computing and Edge Devices
Integrate Wi-Fi 7 connectivity into embedded platforms using the applicable M.2 E-Key or Mini PCIe option, subject to host compatibility and software support.
Robotics and Industrial Automation
Evaluate suitable wireless configurations for robotics, automation and intelligent equipment requiring wireless connectivity for control, telemetry or data transfer.
Actual performance depends on the complete system design, including antennas, RF implementation, software, operating environment and regulatory constraints.
4. Need Help Selecting the Right Wi-Fi 7 Module?
Choosing a module involves more than selecting a frequency band. Host compatibility, RF integration, driver support and project requirements also matter.
524WiFi™ works with customers developing wireless networking hardware and embedded connectivity products.
Our team can discuss:
Module selection based on frequency bands, MIMO configuration and interface requirements
Hardware integration for your target platform
Software compatibility and project-specific requirements
Sample evaluation, volume requirements and pricing
Technical support, software features, certification status and customization options should be confirmed for the specific model and project.
Discuss Your Wi-Fi 7 Project with 524WiFi™
Developing an access point, industrial wireless device, networking product or embedded system?
Contact us to discuss the 524WiFi™ Pulse P9274 Wi-Fi 7 module series and identify suitable options for your application.
To help us recommend the right configuration, please share:
Required frequency bands
4×4 MIMO or dual 2×2 radio requirements
M.2 E-Key or Mini PCIe interface
Target application
Estimated order quantity and development schedule
524WiFi™ · Pulse P9274 Wi-Fi 7 modules · deployment illustrationConcept illustration of wireless radio integration. Hardware appearance in this supplementary scene is illustrative; model-specific photographs and specifications are shown above. Open full-size image
The PoE-out port can power a downstream device, such as a camera.

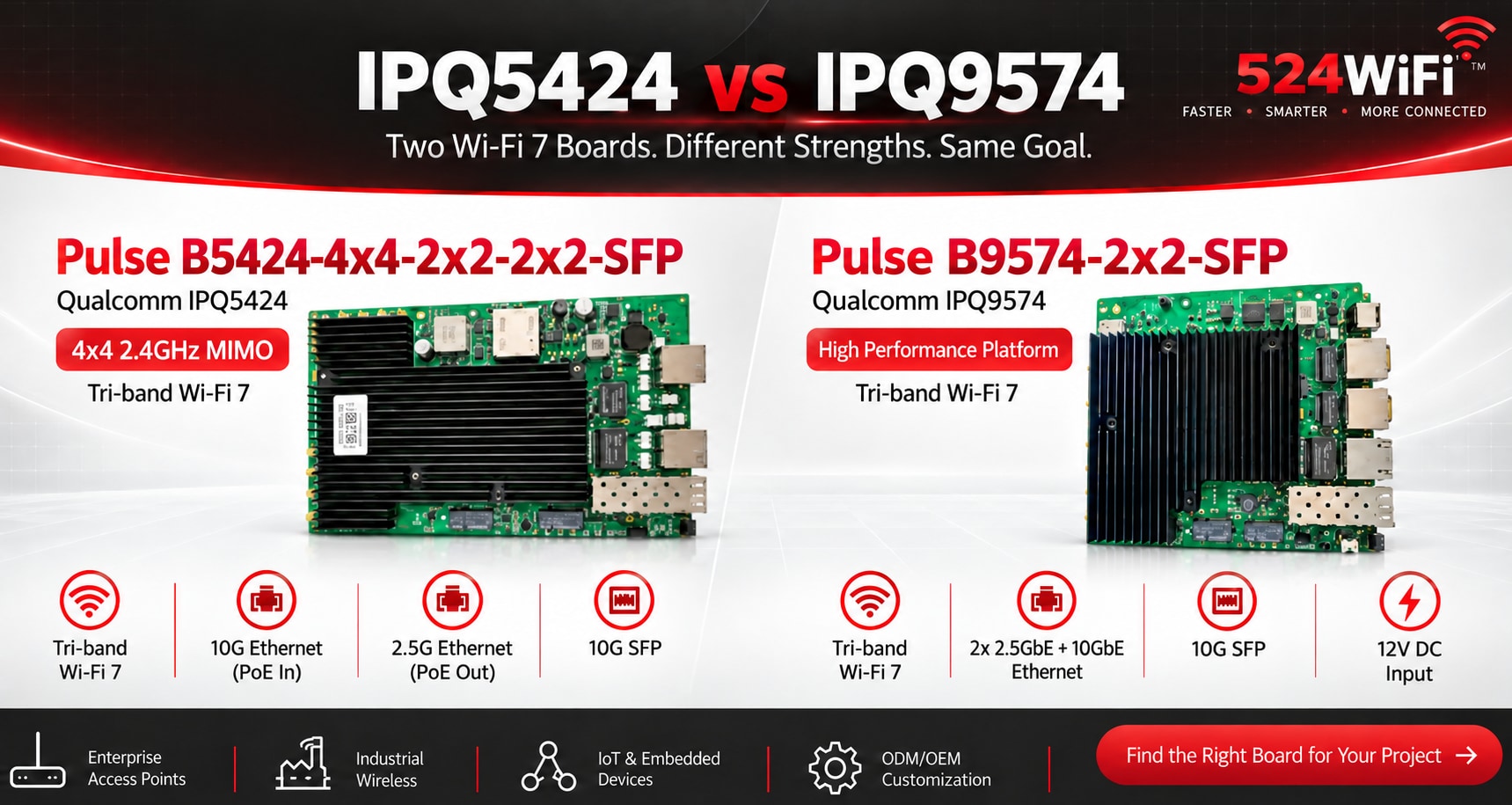

524WiFi™ Pulse B9574-2×2-SFP Qualcomm IPQ9574
Built for designs that need:
2×2 MIMO on all three bands
Two 2.5GbE ports + one 10GbE port
10G SFP
12V DC input
M.2 for Wi-Fi + M.2 for a Quectel modem
The 10G port is marked for PoE. Confirm the power setup for your hardware version.
Side by side

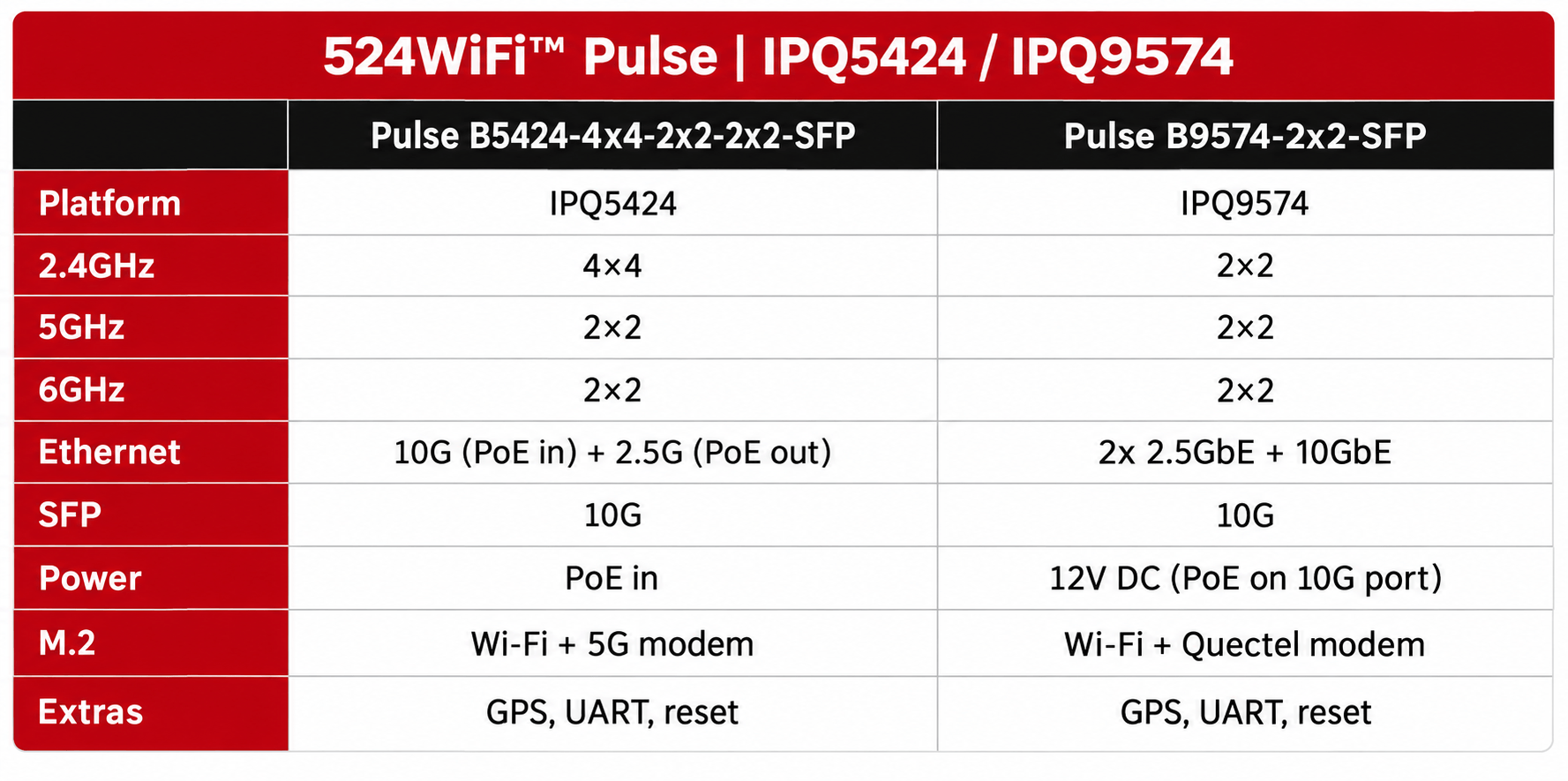

524WiFi™ · Pulse IPQ5424 / IPQ9574 · platform comparisonRadio configuration, Ethernet, fiber, power and expansion compared. The IPQ9574 platform uses two 2.5GbE ports, as specified in the original product description. Open full-size image
Pick 524WiFi™ Pulse B5424-4×4-2×2-2×2-SFP if you need:
A 4×4 radio on 2.4GHz
PoE in and PoE out on one board
2.5G Ethernet next to 10G SFP
A 5G modem slot
Pick 524WiFi™ Pulse B9574-2×2-SFP if you need:
The IPQ9574 platform
Separate 2.5GbE ports plus 10GbE
A dedicated 12V DC input
A Quectel modem slot
The final choice depends on:
Target throughput
Software functions
Power budget
System design
We do hardware and software customization on both platforms.
Tell us your application, interfaces and power budget. We will help you shortlist.
524WiFi™ · Pulse IPQ5424 / IPQ9574 · deployment illustrationConcept illustration of two network-platform architectures. Hardware appearance in this supplementary scene is illustrative; model-specific photographs and specifications are shown above. Open full-size image
