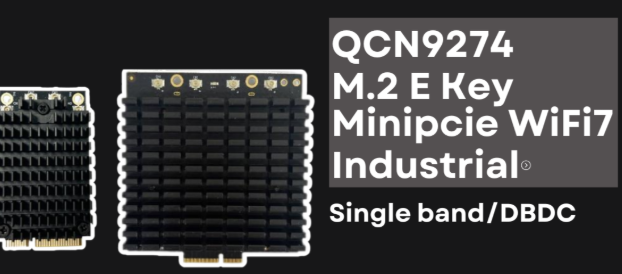

DR9274 QCN9274 QCN6274 WiFi 7 Single Band M.2 E Key Module Datasheet
Overview
The DR9274 WiFi 7 Single Band M.2 E Key module is based on the Qualcomm® QCN9274 or QCN6274 chipset, delivering exceptional wireless performance for industrial, enterprise, and embedded applications. With Single Band (5 GHz or 6 GHz) capability and M.2 E Key form factor, it offers high-speed, low-latency connectivity optimized for modern networking solutions.
Key Features
- Chipset Options: Qualcomm® QCN9274 or QCN6274
- WiFi Standard: IEEE 802.11be (WiFi 7)
- Band Support: Single Band (5 GHz or 6 GHz)
- Form Factor: M.2 E Key
- Interface: PCIe Gen 3
- Modulation: Up to 4096-QAM for higher throughput
- Security: WPA3, Enhanced Encryption
- Industrial Temperature Range: -40°C to +85°C
Performance Advantages
- Ultra-High Throughput – Supports up to 320 MHz channel bandwidth for faster data transfer.
- Low Latency – Ideal for time-sensitive industrial control, AR/VR, and streaming applications.
- Improved Spectrum Efficiency – Thanks to Multi-Link Operation (MLO) and advanced modulation.
- Long-Range Capability – High-gain antennas and optimized RF design extend coverage.
- Power Efficiency – Optimized for battery-powered or embedded devices.
Applications
- Industrial Wireless APs
- 5G/WiFi 7 Gateways
- Smart Cities and IoT
- AR/VR and Immersive Media
- High-Speed Enterprise Networking
- Embedded Systems with M.2 E Key Interface
Technical Specifications
ParameterDescriptionChipsetQCN9274 / QCN6274StandardWiFi 7 (IEEE 802.11be)BandSingle Band (5 GHz / 6 GHz)InterfaceM.2 E Key, PCIe Gen 3Channel BandwidthUp to 320 MHzModulationUp to 4096-QAMAntenna ConnectorIPEX MHF4Temperature Range-40°C to +85°CSecurityWPA3
Why Choose Wallys DR9274 Module from 524WiFi ?
Wallys and 524WiFi specializes in custom industrial wireless solutions, offering:
- Optimized firmware for WiFi 7 performance
- Custom hardware design based on QCN9274/QCN6274
- OEM/ODM/JDM services for industrial clients
- Global technical support
