Flexible Wi-Fi 7 radio configurations. M.2 E-Key and Mini PCIe options. Built for next-generation wireless device development.
Looking for a Wi-Fi 7 module for your next wireless product?
The 524WiFi DR9274 Wi-Fi 7 module series, based on the Qualcomm QCN9274 platform, offers multiple radio configurations to support different wireless hardware designs.
From single-radio 4×4 MIMO to dual 2×2 radio configurations, the series provides options across different frequency ranges, with both M.2 E-Key and Mini PCIe form factors available.
Whether you are developing enterprise access points, industrial wireless equipment, networking devices or embedded systems, the DR9274 series gives you more options when selecting a Wi-Fi 7 module for your project.
Key Features at a Glance
- Qualcomm QCN9274 platform for Wi-Fi 7 module development
- 4×4 MIMO and dual 2×2 radio configurations
- Multiple frequency options: 2.4 GHz, 5 GHz, 6 GHz and specified 5–7 GHz configurations
- Two interface options: M.2 E-Key and Mini PCIe
- Multiple module variants to match different hardware architectures
Actual supported frequencies, operating modes and platform compatibility depend on the selected model and its technical specifications.
1. Flexible Radio Configurations for Different Applications
Different wireless products require different radio architectures. The DR9274 series offers several configuration options to help hardware developers select a suitable starting point.
Single-radio 4×4 MIMO
Available configurations include 2.4 GHz, 5 GHz, 6 GHz and a specified 5–7 GHz variant, depending on the model.
Dual 2×2 radio configurations
Choose from different combinations, including:
- 2.4 GHz + 5 GHz
- 5 GHz + 6 GHz
- 2.4 GHz + 5–7 GHz
- Dual 5–7 GHz configurations
- Dual 6 GHz configurations
These options allow developers to evaluate different radio architectures according to their target frequency bands, antenna design and system requirements.
Note: The availability of simultaneous operation, specific channels and operating modes must be confirmed for the selected model.

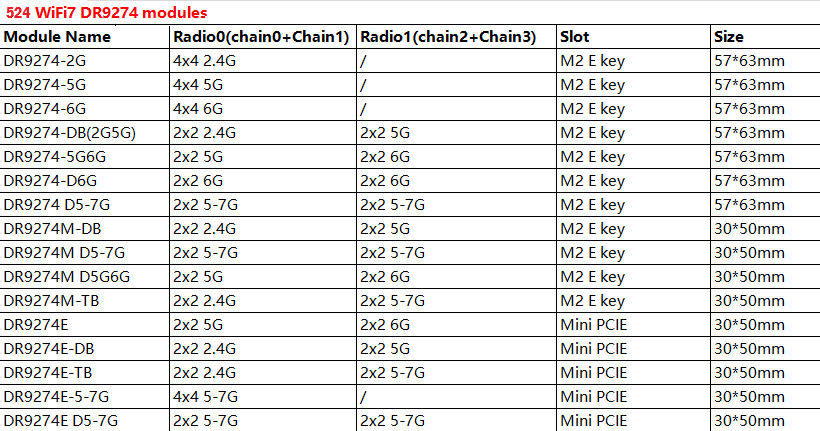

2. DR9274 Wi-Fi 7 Module Selection Guide
3. Potential Applications
Enterprise and Industrial Access Points
Evaluate radio configurations for enterprise and industrial wireless access point designs based on frequency requirements, antenna architecture and system capacity targets.
Wireless Bridges and Networking Equipment
Select a suitable configuration for wireless networking projects based on the intended link architecture, antenna system, operating band and required throughput.
Embedded Computing and Edge Devices
Integrate Wi-Fi 7 connectivity into embedded platforms using the applicable M.2 E-Key or Mini PCIe option, subject to host compatibility and software support.
Robotics and Industrial Automation
Evaluate suitable wireless configurations for robotics, automation and intelligent equipment requiring wireless connectivity for control, telemetry or data transfer.
Actual performance depends on the complete system design, including antennas, RF implementation, software, operating environment and regulatory constraints.
4. Need Help Selecting the Right Wi-Fi 7 Module?
Choosing a module involves more than selecting a frequency band. Host compatibility, RF integration, driver support and project requirements also matter.
524WiFi works with customers developing wireless networking hardware and embedded connectivity products.
Our team can discuss:
- Module selection based on frequency bands, MIMO configuration and interface requirements
- Hardware integration for your target platform
- Software compatibility and project-specific requirements
- Sample evaluation, volume requirements and pricing
Technical support, software features, certification status and customization options should be confirmed for the specific model and project.
Discuss Your Wi-Fi 7 Project with 524WiFi
Developing an access point, industrial wireless device, networking product or embedded system?
Contact us to discuss the DR9274 Wi-Fi 7 module series and identify suitable options for your application.
To help us recommend the right configuration, please share:
- Required frequency bands
- 4×4 MIMO or dual 2×2 radio requirements
- M.2 E-Key or Mini PCIe interface
- Target application
- Estimated order quantity and development schedule
